Description

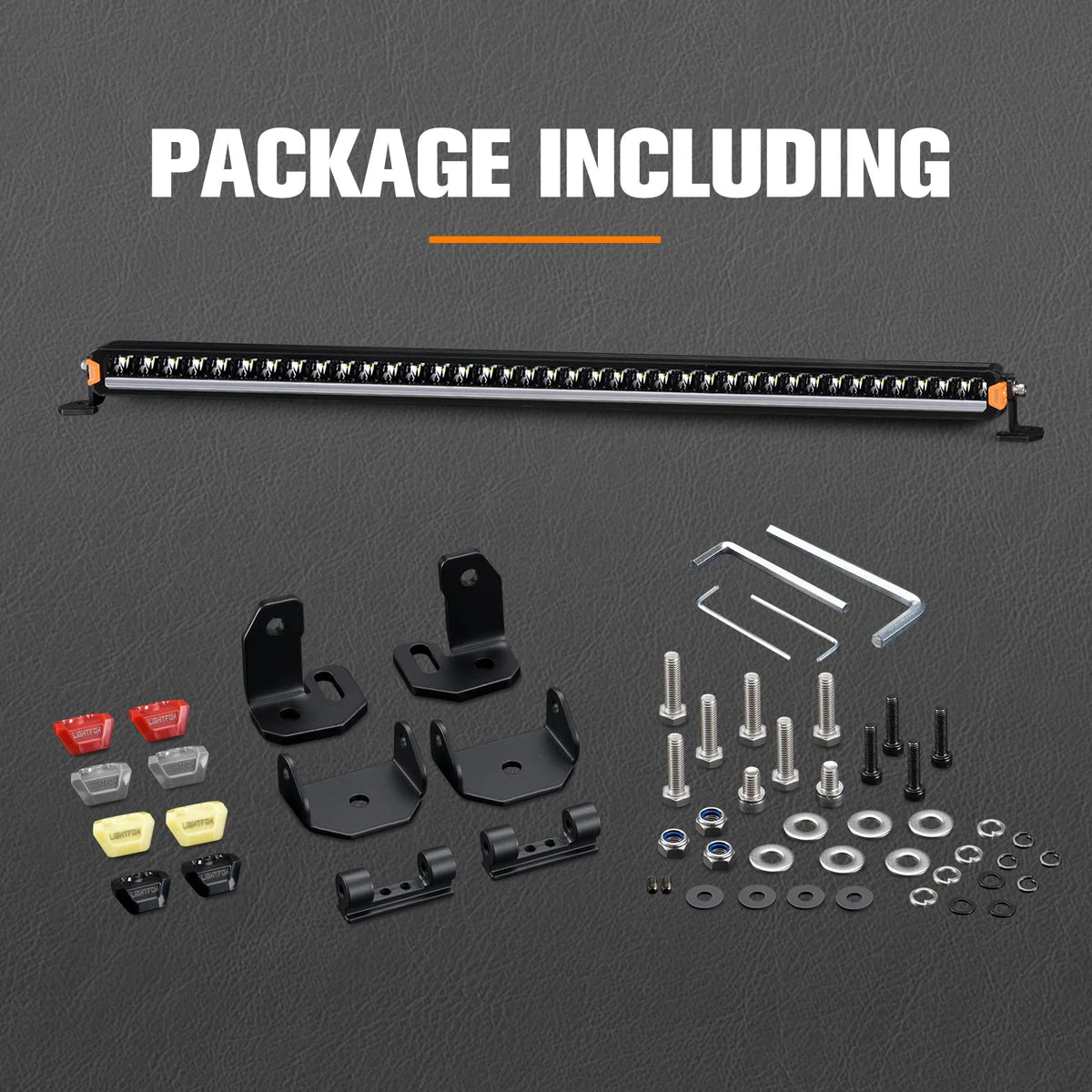

Package Includes:
- 1 x Lightfox 40inch LED Light Bar
- 1 Pair of Side Brackets
- 1 Set of Bottom Brackets
- Set of Mounting Hardware
- 4 Pairs of Colour Caps
- 1 x User Manual
Warranty:
5 Years Warranty
Engineered for demanding off-road conditions, the Lightfox 40inch LED Light Bar provides an impressive 18,700 lumens and a long-range 1Lux@2,411ft beam to ensure clear visibility over any terrain. Featuring Vision Drive reflector technology and a sleek DRL function, this durable and versatile LED bar combines high performance with rugged build quality. With a 5,500K colour temperature, UV-resistant housing, dual mounting options, and interchangeable coloured caps, it offers functional power and customisable style for your 4×4 setup.

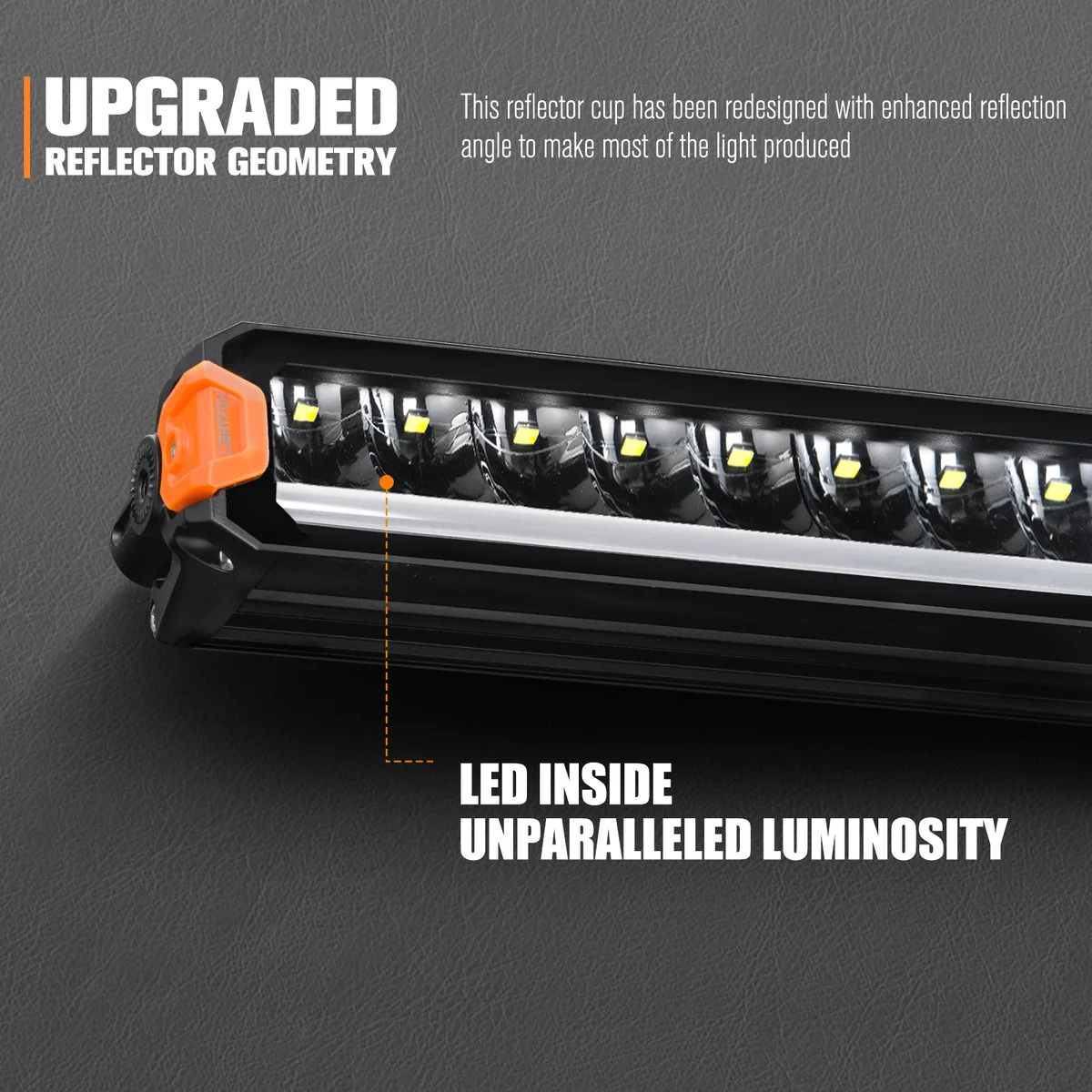

- Vision Drive Technology – Curved, metalised reflectors maximise light projection and beam clarity
- 18,700 lumens – High output ensures clear night driving across wide terrain

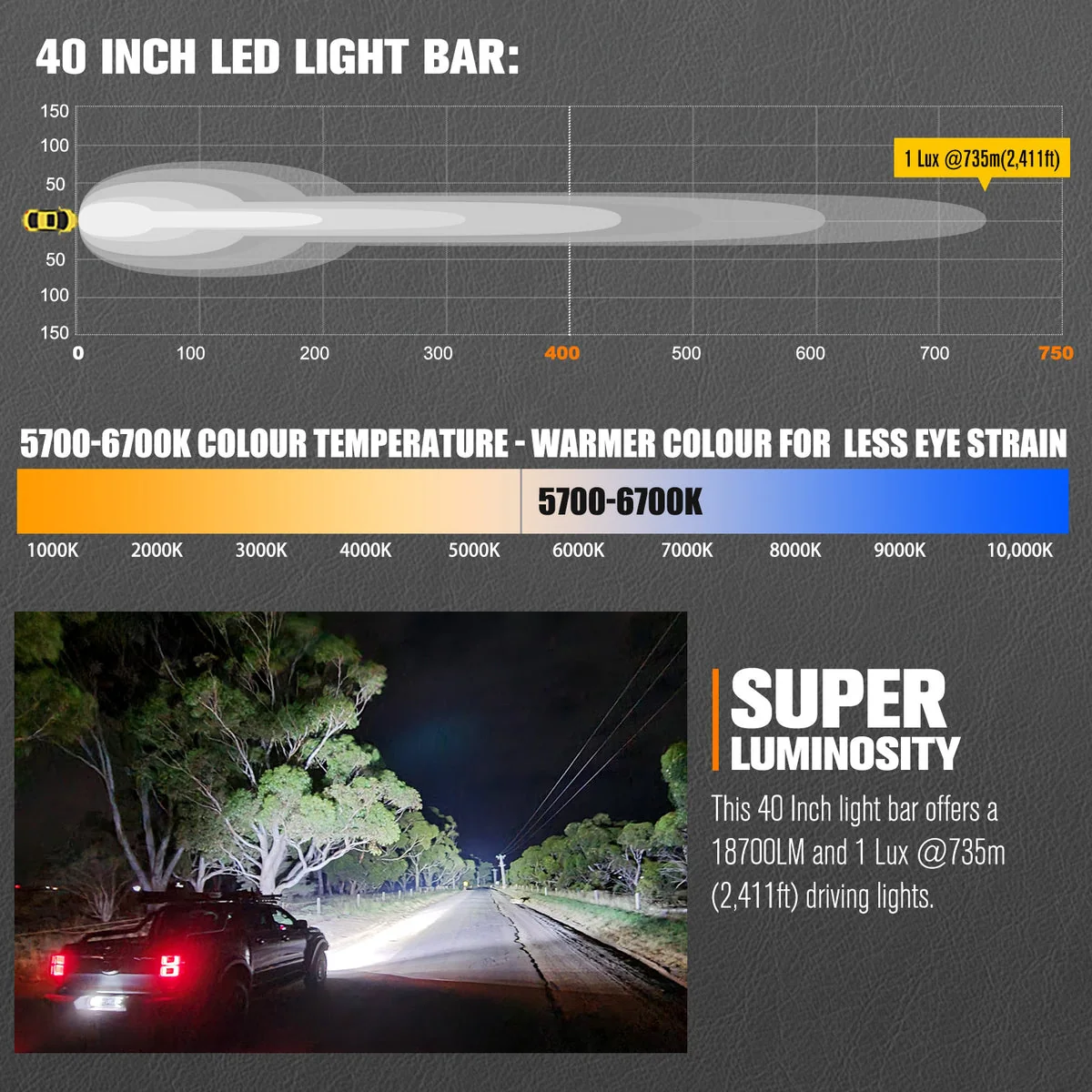

- 1Lux@2,411ft (735m) – Precision beam reaches long distances with focused intensity
- Daytime Running Light – Built-in white DRL improves daytime safety and on-road visibility
- 5,500K colour temperature – Soft white light reduces glare and eye strain for longer journeys

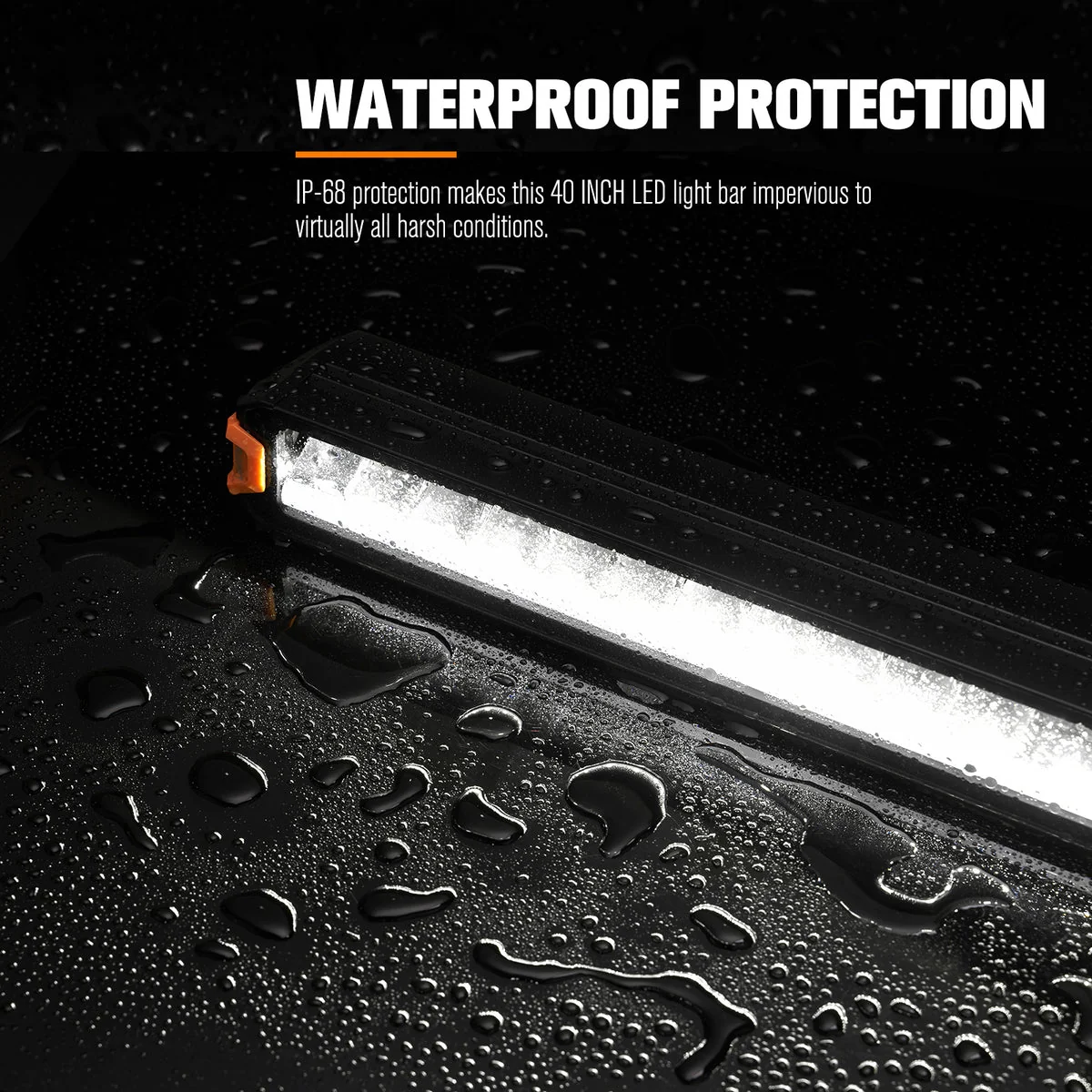

- IP68 waterproof rating – Fully sealed with UV resin for total protection against water and dust

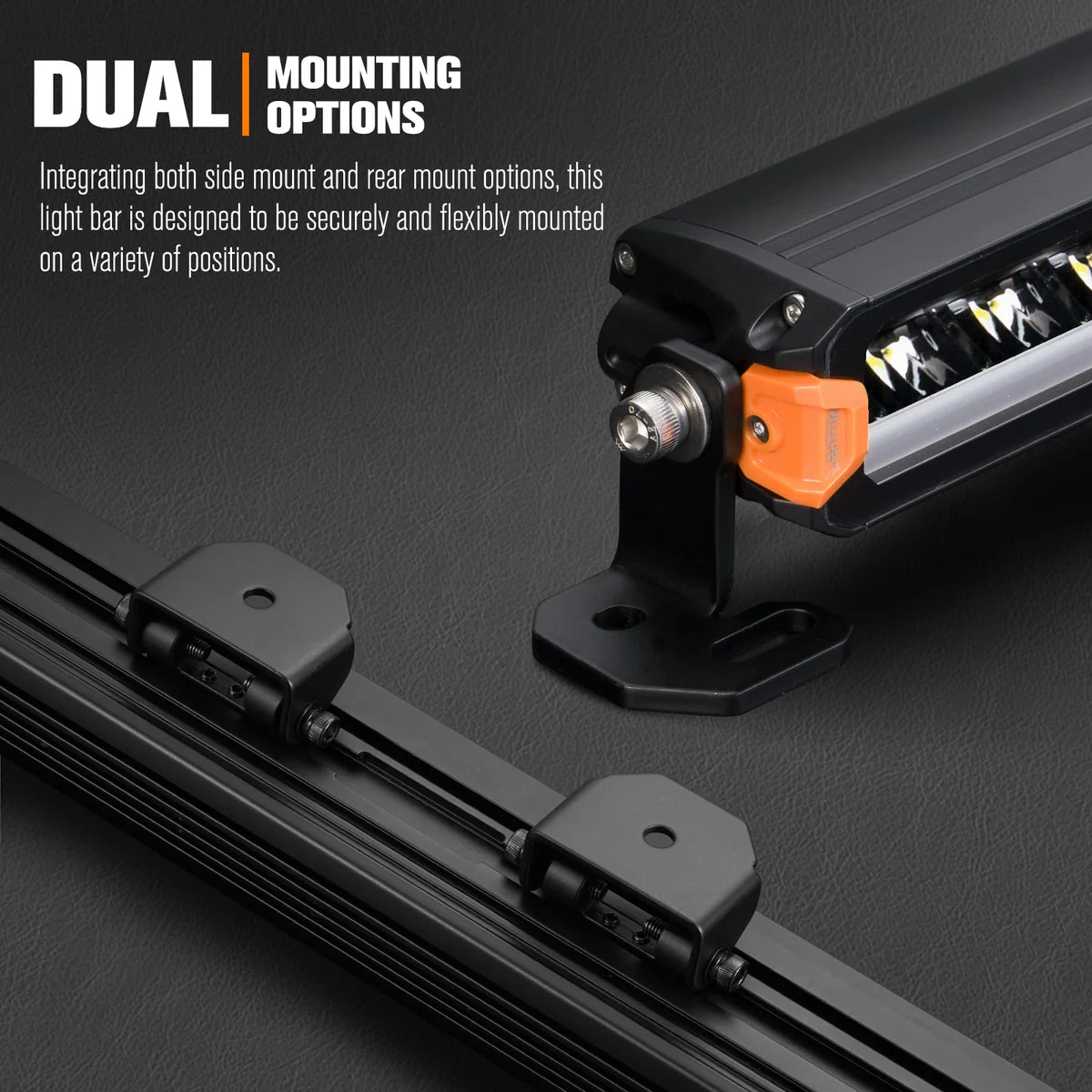

- Dual mounting options – Includes side and bottom brackets for flexible installation on roof racks or bars
- AkzoNobel powder-coated aluminium housing – Resists corrosion, UV damage, and off-road wear
- Scratch-resistant PC lens – Strengthened polycarbonate resists debris and impact
- Advanced cooling fins – Integrated heat sinks ensure consistent performance and 50,000-hour lifespan
- Reverse polarity protection – Built-in safety features ensure stable electrical operation
- Condensation breather – Prevents moisture build-up inside the lens for long-term clarity

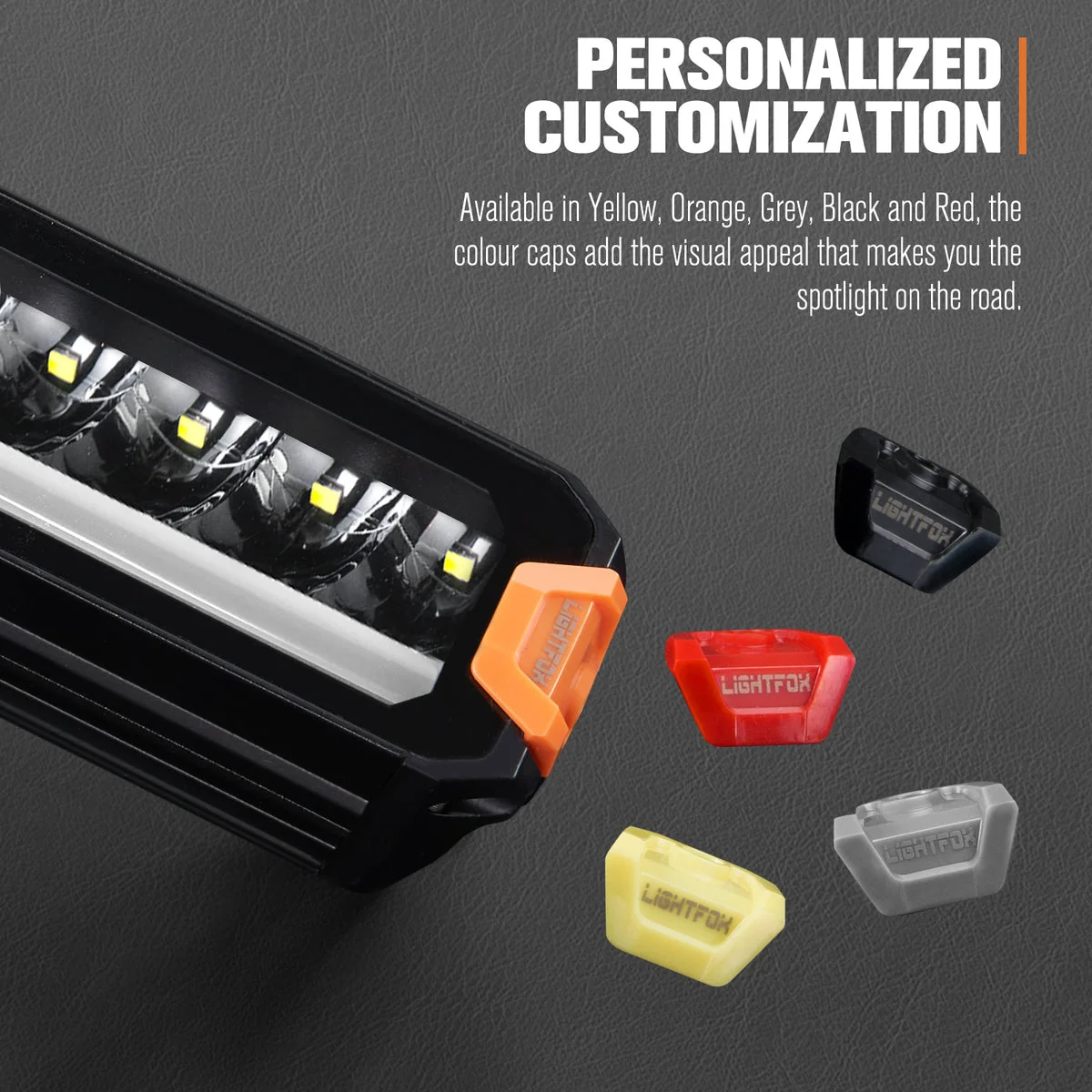

- Custom colour caps – Choose from red, black, yellow, orange, or grey to match your rig’s look
| Bulb Type: | High-performance LEDs |
| Theoretical Output: | 190W |
| Housing & Heat Sinks: | Aluminum |
| Lens: | Strengthened PC |
| Coating: | AkzoNobel Powder |
| Sealing Material: | UV Resin |
| Side Bracket: | Stainless Steel |
| Bottom Bracket A: | Stainless Steel |
| Bottom Bracket B: | Aluminum |
| Raw Lumens: | 18,700LM |
| Lux Rating: | 1Lux@735m (2,411ft) |
| Color Temperature: | 5,500K |
| Expected Lifespan: | 50,000 Hours |
| Operating Temperature Range: | -40°F ~ 149°F |
| Waterproof: | IP68 Rating |

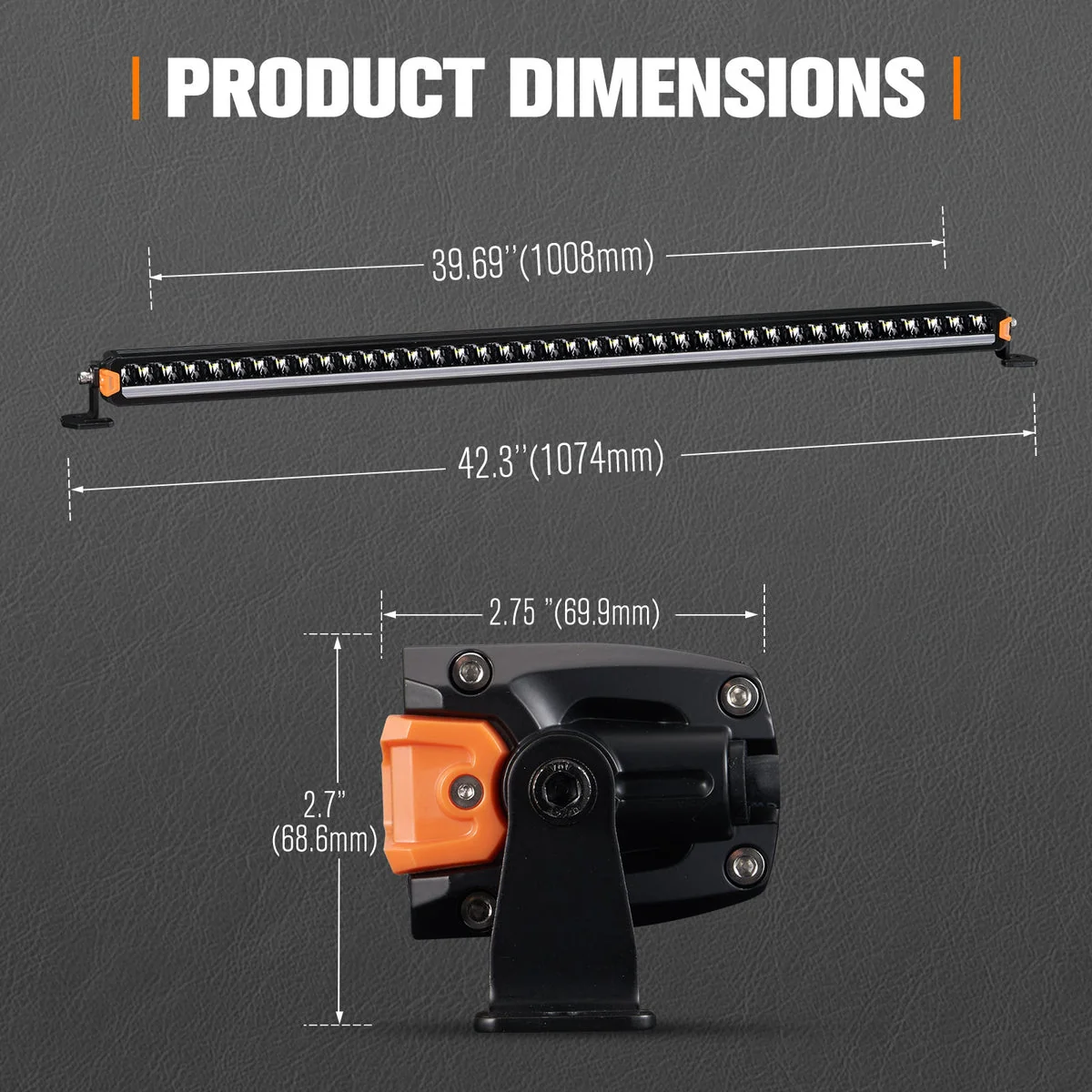

| Product Dimension (With Side Brackets): | 42.3 x 2.75 x 2.7 inches (LxWxH) |
| Product Dimension (With Bottom Brackets): | 39.69 x 2.95 x 3 inches (LxWxH) |
| Package Size: | 46 x 4.3 x 3.1 inches (LxWxH) |
| Gross Weight: | 11.15lb |
